1、环境

节点	主机名	ip地址	操作系统版本
节点一	midware1	10.5.11.74	centos 7.5
节点二	midware1	10.5.11.75	centos 7.5

2、编译RPM包

  官网只提供源码包，需要编译成安装包，编译环境可选本地虚拟机（需与安装机器操作系统版本一致）或者要安装的服务器

  一般选择本地虚拟机，服务器缺少对应编译依赖

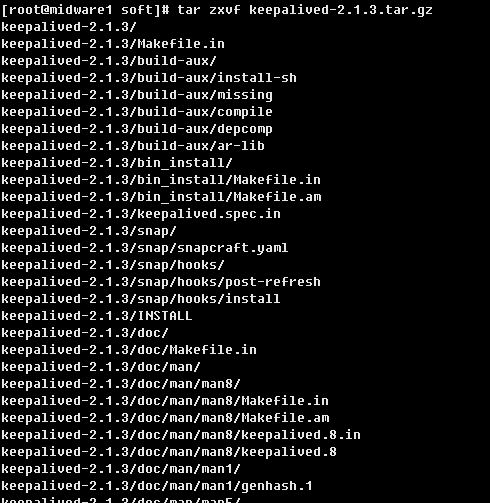

2.1、解压源码

tar zxvf keepalived-2.1.3.tar.gz

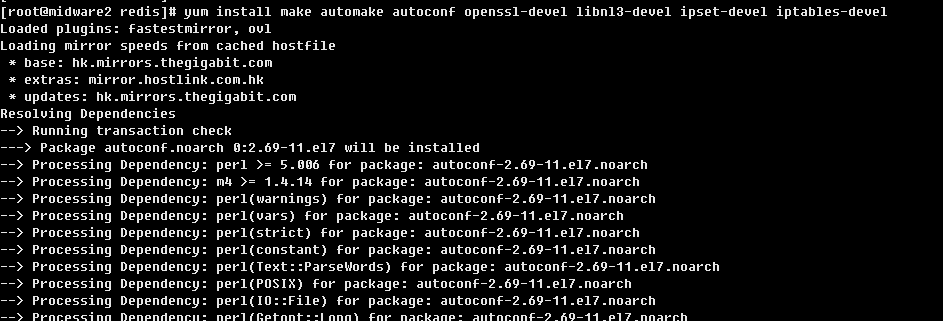

2.2、前置依赖安装

yum install make automake autoconf openssl-devel libnl3-devel ipset-devel iptables-devel rpm-build

2.3、编译

cd keepalived-2.1.3
mkdir -p $HOME/rpmbuild/SOURCES

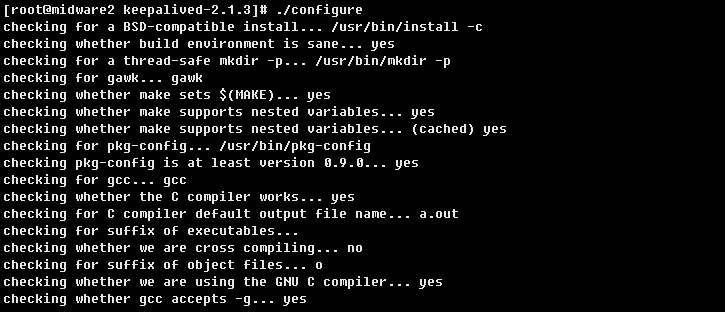

./configure

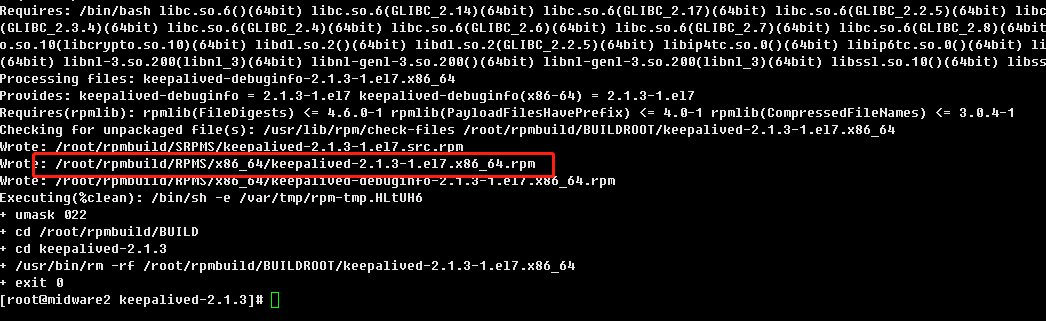

make rpm

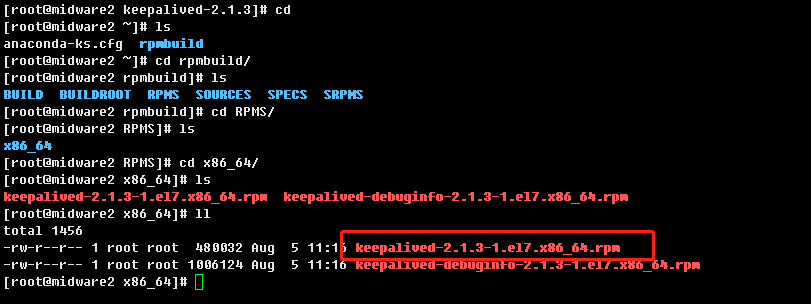

[root@midware2 soft]# ls $HOME/rpmbuild
BUILD  BUILDROOT  RPMS  SOURCES  SPECS  SRPMS
[root@midware2 soft]# ls $HOME/rpmbuild/RPMS
x86_64
[root@midware2 soft]# ls $HOME/rpmbuild/RPMS/x86_64
keepalived-2.1.3-1.el7.x86_64.rpm  keepalived-debuginfo-2.1.3-1.el7.x86_64.rpm
[root@midware2 soft]#

  复制 keepalived-2.1.3-1.fc32.x86_64.rpm 到要安装的服务器节点一、节点二

3、节点一安装

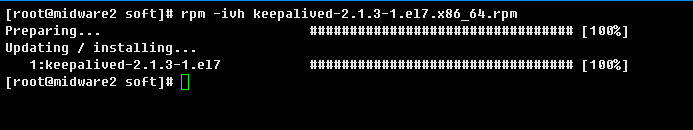

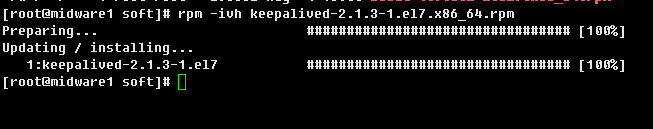

3.1 安装rpm

rpm -ivh keepalived-2.1.3-1.el7.x86_64.rpm

3.2 配置

vi /etc/keepalived/keepalived.conf

global_defs {
        router_id midware1
}
vrrp_instance VI_1 {
        state MASTER
        interface ens33
        virtual_router_id 51
        priority 100
        advert_int 1
        authentication {
            auth_type PASS
            auth_pass 1111
        }
        virtual_ipaddress {
            10.5.11.73/24  dev  ens33 label ens33:vip
        }
}

参数解释
state 主为 MASTER,备份为 BACKUP
interface 网卡名称
priority  主的优先级比备份的高

3.3 启动

systemctl enable keepalived.serevice
systemctl start keepalived.serevice

4、节点二安装

4.1 安装rpm

rpm -ivh keepalived-2.1.3-1.el7.x86_64.rpm

4.2 配置

vi /etc/keepalived/keepalived.conf

global_defs {
        router_id midware2
}
vrrp_instance VI_1 {
        state BACKUP
        interface ens33
        virtual_router_id 51
        priority 99
        advert_int 1
        authentication {
            auth_type PASS
            auth_pass 1111
        }
        virtual_ipaddress {
            10.5.11.73/24  dev  ens33 label ens33:vip
        }
}

4.3 启动

systemctl enable keepalived.serevice
systemctl start keepalived.serevice

如有多余两个节点的情况，重复章节4

[root@localhost keepalived-2.1.3]# systemctl status keepalived.service
● keepalived.service - LVS and VRRP High Availability Monitor
     Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
     Active: active (running) since Wed 2020-07-01 18:51:06 CST; 29min ago
    Process: 1037 ExecStart=/usr/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS)
   Main PID: 1042 (keepalived)
      Tasks: 2 (limit: 9467)
     Memory: 2.1M
     CGroup: /system.slice/keepalived.service
             ├─1042 /usr/sbin/keepalived -D
             └─1043 /usr/sbin/keepalived -D

5、测试

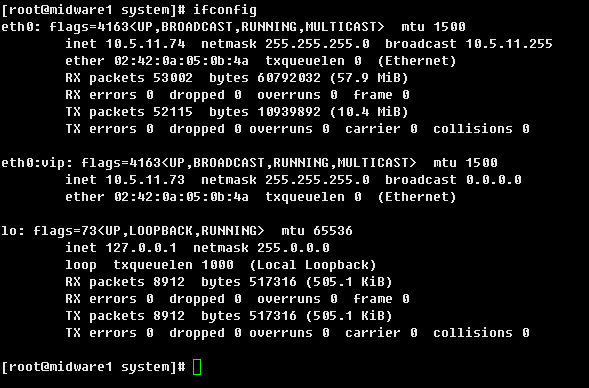

5.1 查看节点一网口情况

ifconfig

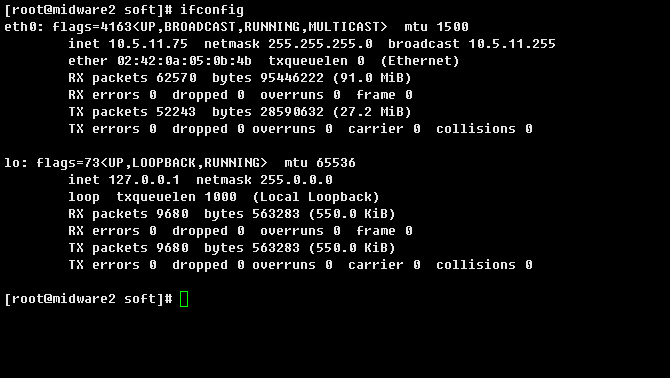

5.2 查看节点二网口情况

ifconfig

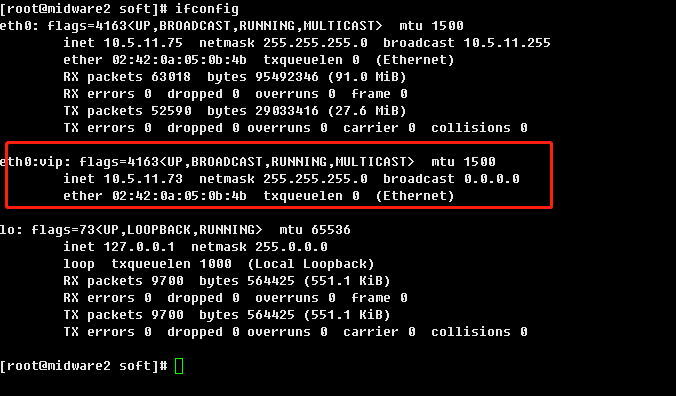

5.3 节点一关机，查看节点二网口情况

ifconfig

可以看到VIP漂到节点二

---
